Digital Display

Analog Scale

Stainless Steel Probe Straight Arm

Stainless Steel Probe Swivel Arm

Nylon Probe Straight Arm

4 Flat Points

3 Ball Points

Flat

Resin / Flat

Biuetooth BOX

■Model No. DTW-DG01

Bluetooth Adaptor : Bluetooth LE * ver.4.0~ (HOGP profile)
●Transmitting Distance : Range ~30 m ※class : 2
●Battery : Lithium Polymer  ( 350 mAh )
●Running Time : Aprx. 17 hours ( 250 datas per hour )
●Recharging Time : Aprx. 100 minutes
●Size : L35 x W57 x H17.5 mm  /  Weight : 45 g

< Accessories >
USB data cable (20cm), USB recharge cable (1m), Caliper board, Insturction manual and Dadicated software (B LOG)

Attach the Bluetooth BOX to Digital Gap Caliper for wirelessdata transmission.

4 Flat Points

●Capable to measure the location with radius curves and ditches/ grooves
●Can be measured on the measuring object

3 Ball Points

●Capable to measure the location with swell curves and curved lines
●It can also be measured on the measuring object

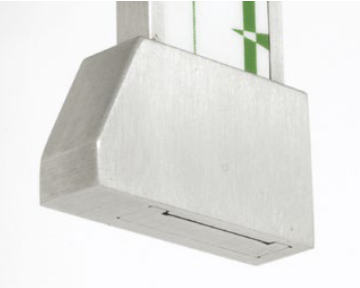

Flat

●For measuring flat surface

Resin / Flat

●For protecting delicate measuring surface from scratching
●In combination with Nylon point x Straight arm

Stainless Steel Probe Straight Arm

●Adjustable arm location
●Quick on-point measurement is possible

Stainless Steel Probe Swivel Arm

●For tweak adjustment
●For free angle measurement

Nylon Point Probe Straight Arm

●Nylon-made probe for protecting delicate measuring surface from scratching
●Fine adjustment of measurement point is possible

Digital Display

●Digital display for easy reading

●With hold function※Convenient when direct reading is not possible

●Compatible with Bluetooth BOX (sold separately)

※Wireless transmission of measurement data to PC is possible with combination use of Bluetooth BOX. Suitable for measurement data management.
